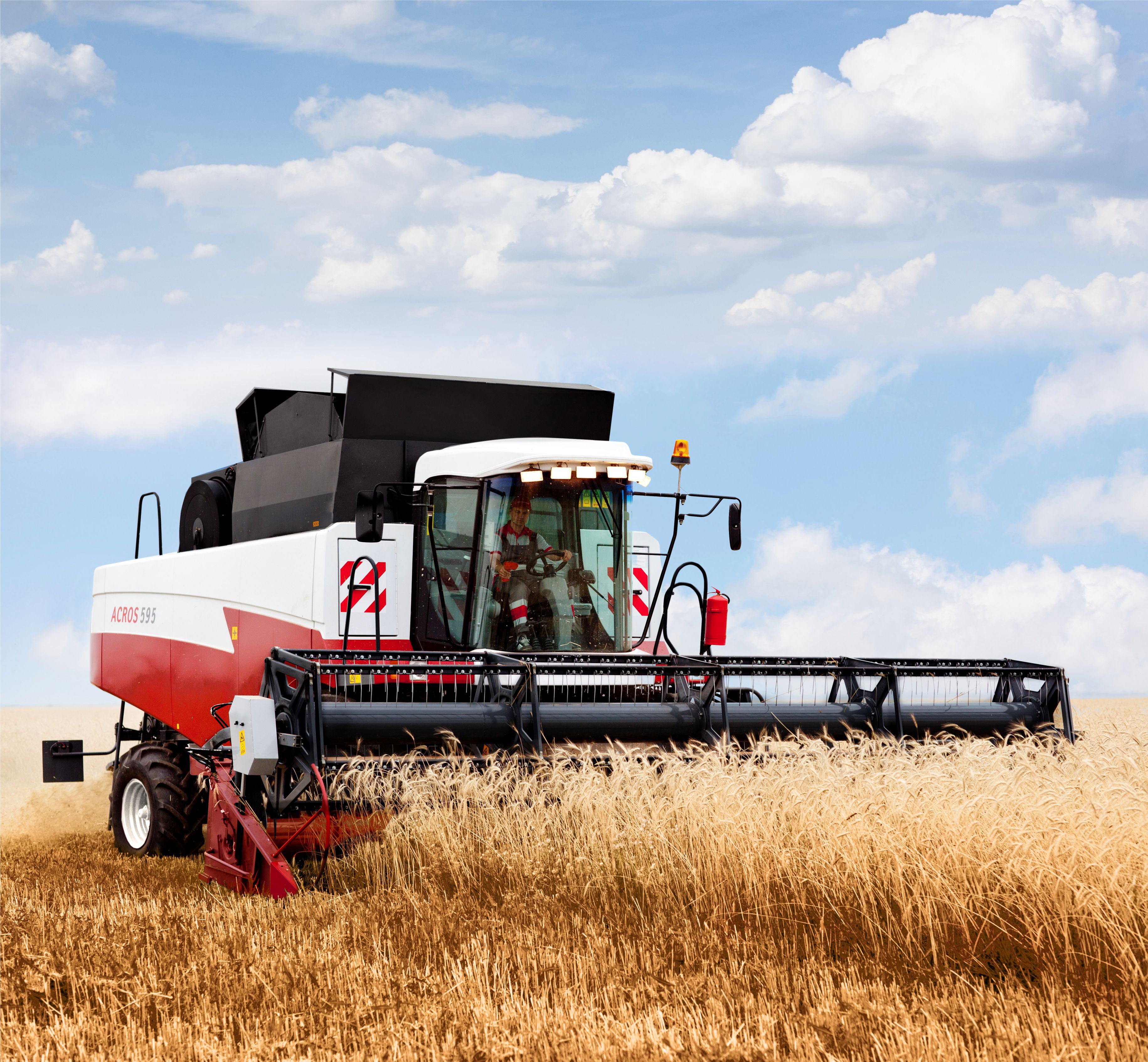

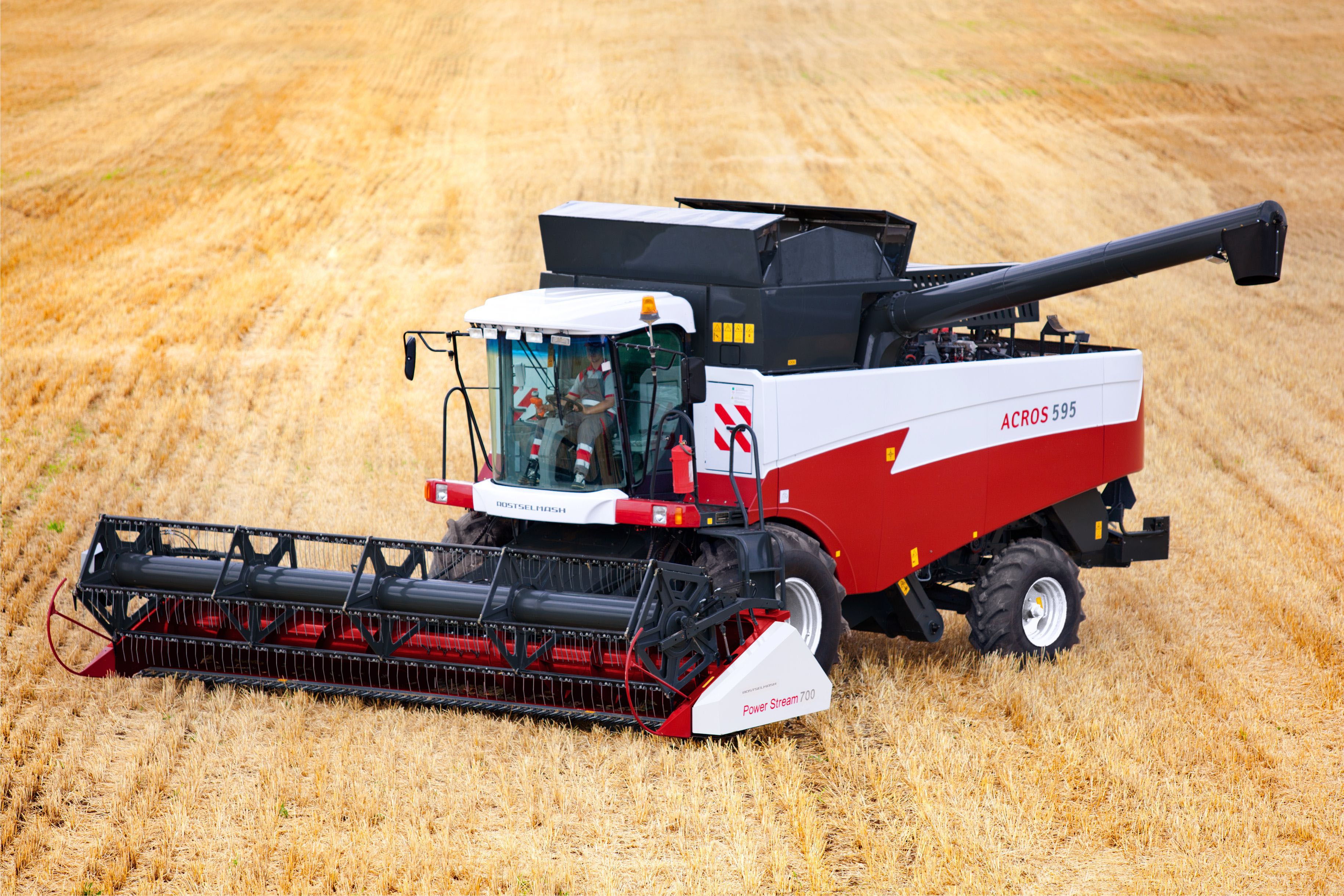

Grain harvester ACROS 595 Plus

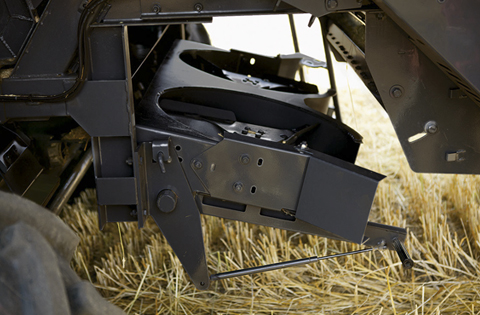

The ACROS 595 Plus inclined chamber uses a unique decision – accelerating beater is installed at the transporter output. It allows the harvester to get a series of operating advantages: now, the mass is not only flattened, but also accelerated before it is fed into threshing drum. As the result, the load on thresher is reduced, and its capacity is increased.

Due to absence of input beater, there is no necessity in reequipping the inclined chamber for harvesting the row crops. The device endured other changes. The ACROS 595 Plus inclined chamber became longer by 0.25m. It also promotes the uniform feeding of the mass into thresher. Besides, the cutting apparatus coverage has been improved, and the reaper installation/removal procedure has been made easier.

Rostselmash designed original and highly efficient threshing system for ACROS. Strong and reliable, with high efficiency and careful separation, meeting the highest grain quality requirements.

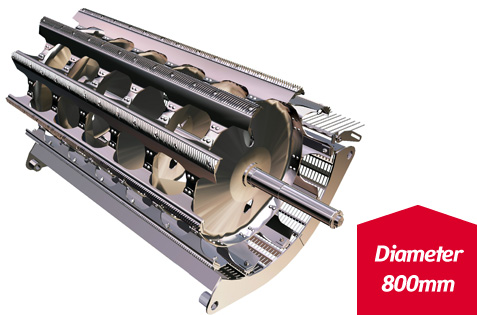

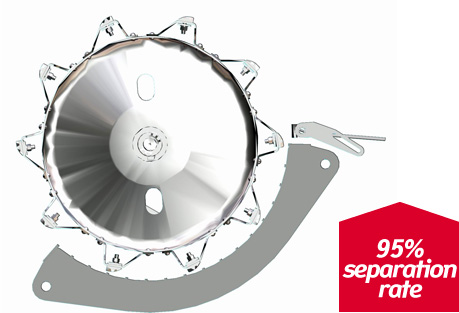

Super-drum

Its main feature is original threshing drum of the largest diameter in the world (800mm), which, due to enormous persistence, easily copes with wet, contaminated or twisted crop mass.

Traditional threshing system used in the harvester is reasonably considered as a strong ACROS feature. Classical single-drum thresher represents objectively the best combination of high capacity and low energy expenses. Besides, it differs by minimum risks of grain damage and care of straw.

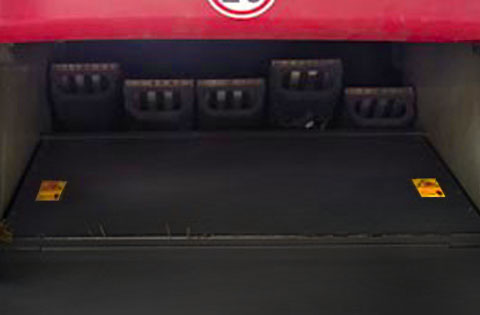

New straw walker of ACROS 595 Plus provides more intensive separation process, especially in high humidity conditions. Its area is increased, the bar grooves are made lengthwise providing better grain falling.

ACROS 595 Plus has got new cleaning system. Additional sieve creates the second blown cascade, where the more powerful air flow is created by highly efficient 2-section fan, and the total area of sieves comprises 5.2 m2. All these features provide grain entering into the grain tank without requiring the additional cleaning.

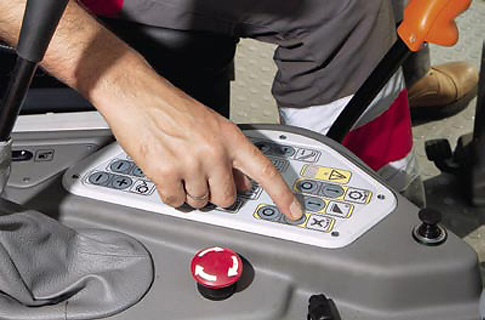

Electrical adjustment of the sieves allows rapidly and conveniently to perform all cleaning adjustments without leaving the work station. It enables to reduce ineffective labor time and losses. This option acquires special meaning in changeable harvesting conditions.

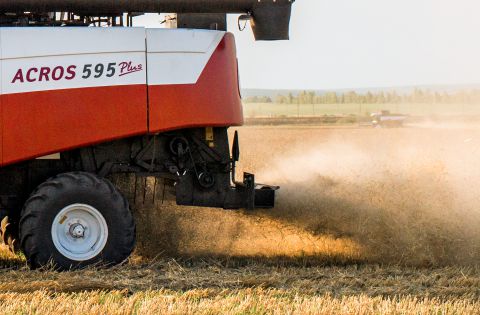

ACROS classical threshing and separation system practically does not damage the straw. Depending on the supposed use, the straw can be shred and throw, or lay it into swath.

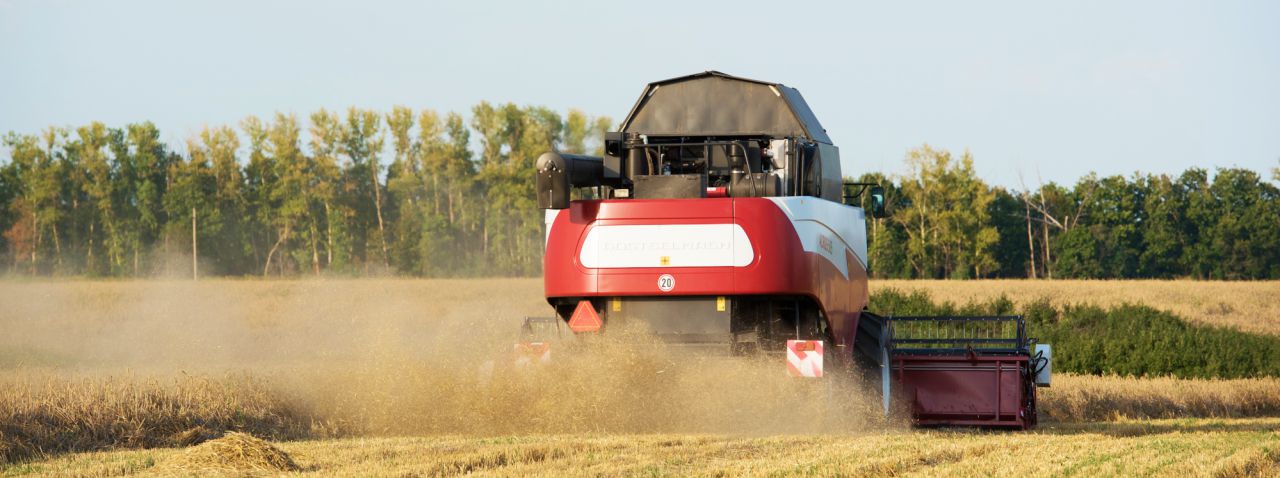

Integrated shredder-thrower

provides thorough straw cutting and its uniform distribution over the field surface at preset reaper width. The design uses knives with wear-resistant edges having self-sharpening effect.

ACROS harvesters are equipped with Cummins 6-cylinder reliable engines thoroughly selected in respect of power and torque moment. Torque reserve of 20% guarantees that ACROS will reliably perform its operation in any harvesting situation.

Does not require too much

Minimum fuel cost is another condition of high-effective harvesting, which has been taken into account when choosing the engines for ACROS.

You will be pleasantly surprised by low fuel consumption and high efficiency of the engine, which guarantee minimum fuel consumption per a ton of threshed grain.
Economical engine together with 540L fuel tank allow to work up to 14 hours without refueling.

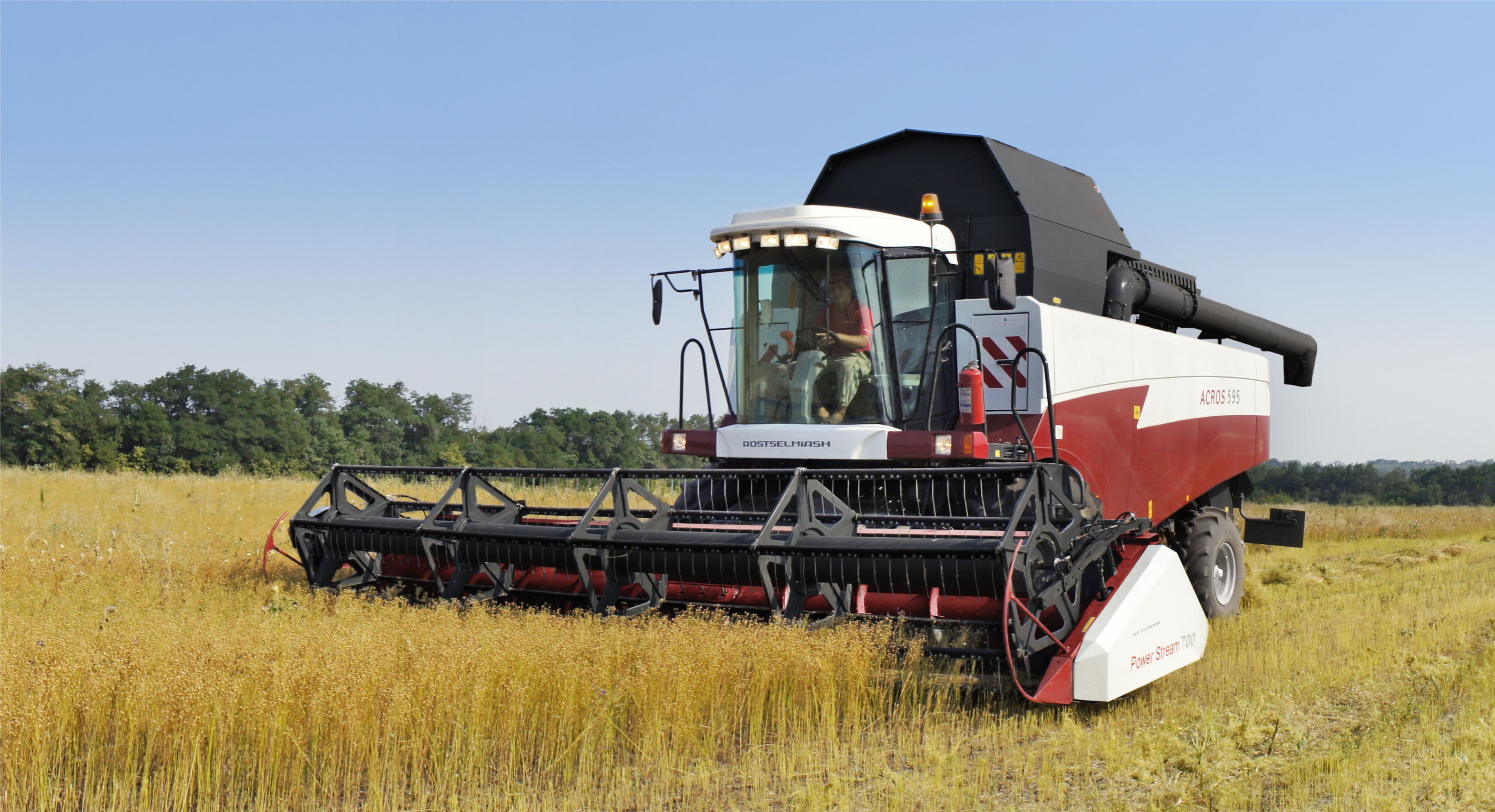

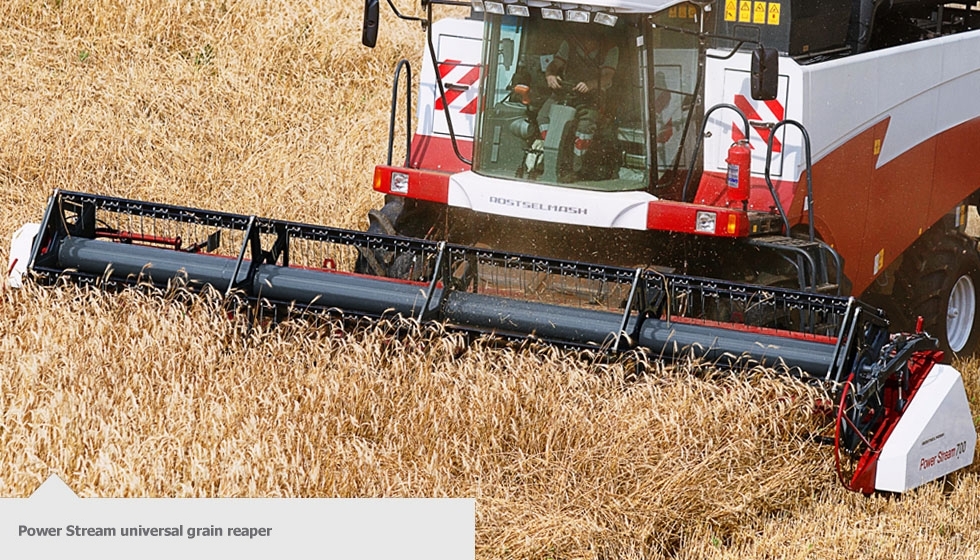

The correspondent frontal equipment is required for such high-efficient harvesters. Everybody knows that the harvesting starts from reaper. Therefore, the selection of right decision represents the most important aspect when selecting the harvester.

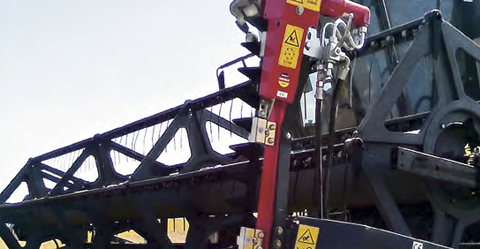

The reaper hydraulic drive

allows to adjust its rpm without gears providing optimal and uniform mass feeding for the high productivity purpose. It is easy and reliable mechanism with minimal adjustments.

Reaper rpm and harvester drive speed synchronization system

makes easier the harvester operator’s work, and reduces the requirements to his qualification. As the result, increased harvesting productivity and reduced losses. Connecting areas of the reaper beams and rake elements are reliably protected from winding of long-stem plants.

Schumacher cutting apparatus

operates smoothly, precisely and without wear. High cutting rpm and increased travel of knives increase the cut quality and, respectively, the harvesting productivity, especially in adverse conditions. The knives are attached with bolts, what considerably reduces the time of their replacement. In order to harvest the laid crops on uneven soils, the stem-lifters, which preliminary lift the stems fromground, are used to reduce the losses (included into basic set).

The large diameter worm

prevents the winding of high-stem crops. Pins between the worm threads arranged along the coverage width promote the mass feeding even when harvesting peas and very low barley (for reapers with electrical-hydraulic copying). There are grooves on the pins allowing their careful braking in case of getting the rocks.
