  • Зерноуборочный комбайн TORUM 770

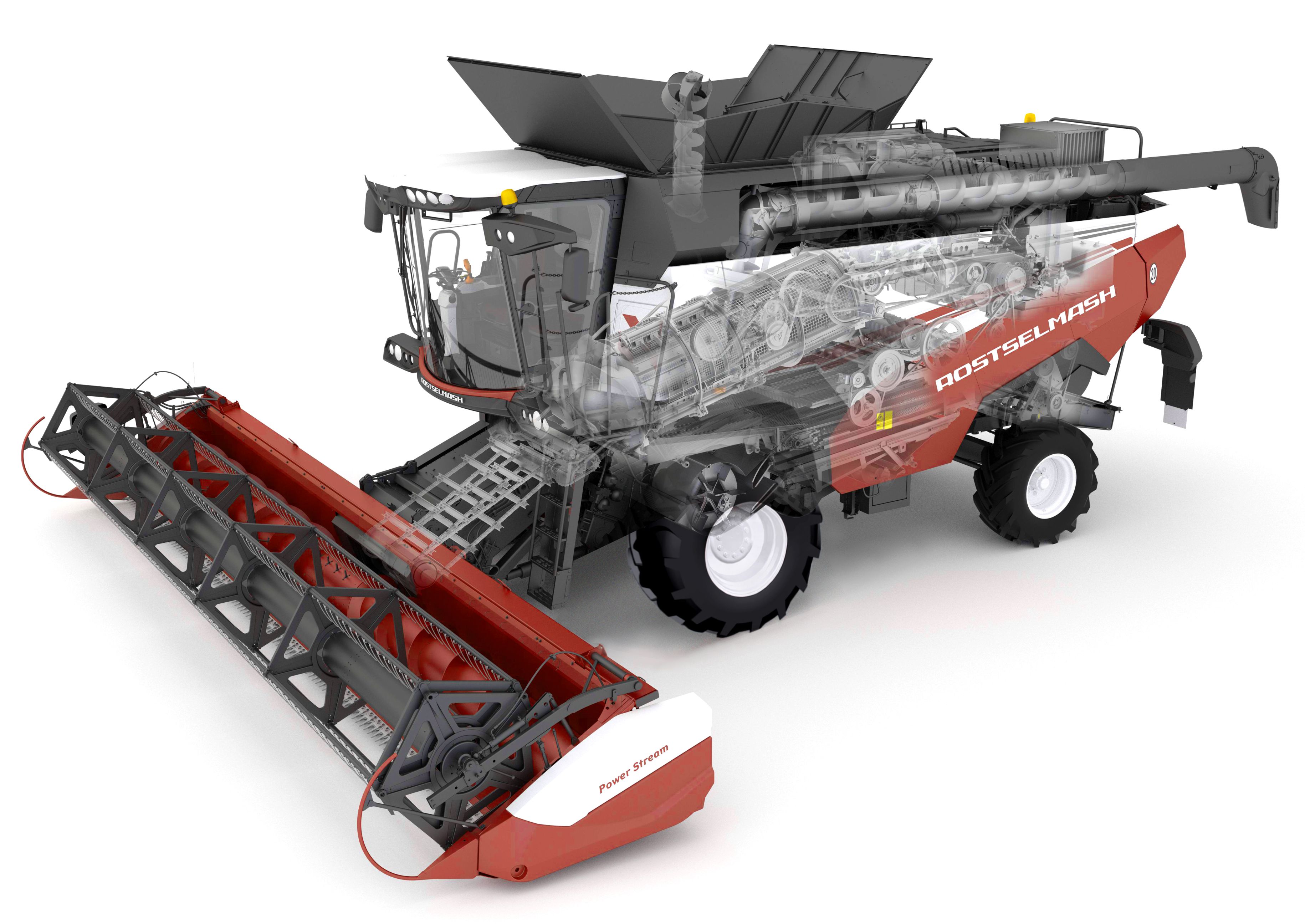

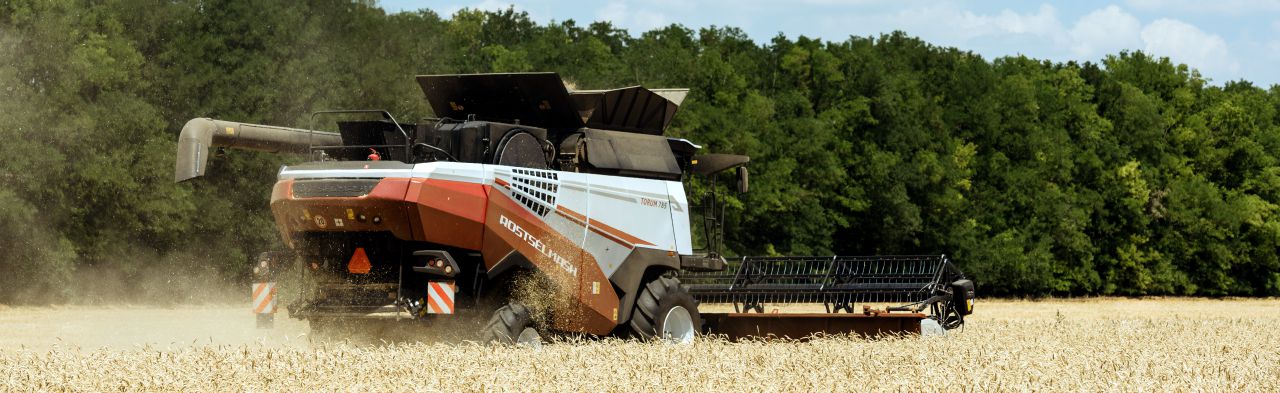

    GENERAL DESCRIPTION

    TORUM - is a powerful rotor-type harvester, one of the most high-efficiency in the world. TORUM is able to harvest more than 2000 hectares of various cultures, making 40 tons
    of grain per hour, and 300 tons per shift.

    The harvester is based on the unique threshing system Advanced Rotor System (ARS). ARS includes three innovations: beater inclined chamber, rotor with revolving deck, and stepless rotor drive.

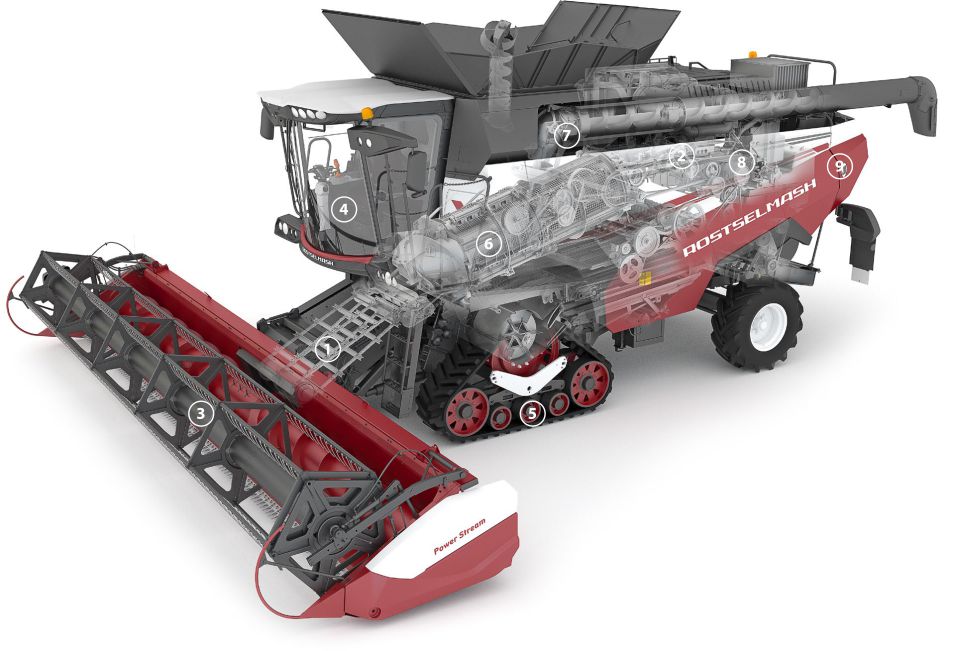

    • 1. Feeder house
      2. Engine set 520 h.p.
      3. Power Stream header
      • ?>
    • 4. Cabin Luxury Cab II
      5. Semi-track chassis
      6. Advanced Rotor System
          with a rotating concave
    • 7. Quick unloading
      8. Variable ratio rotor drive
      9. Easy servicing

  		•

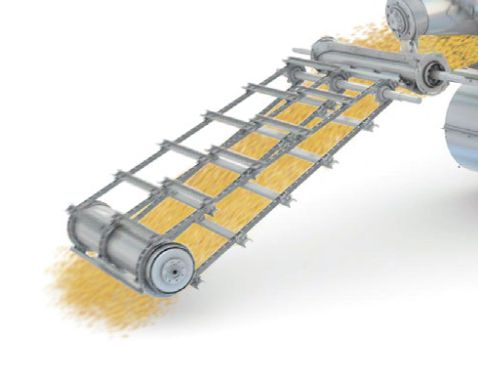

  • FEEDER HOUSE



    New generation feeder house significantly increases the harvester functionality
    and operational comfort for different crops. Basic configuration features a single hydraulic coupling, adjustable angle for higher performance and ease of harvesting
    of any crops without making any modifications, with quick adapters connections (headers of 4,500 kg weight).

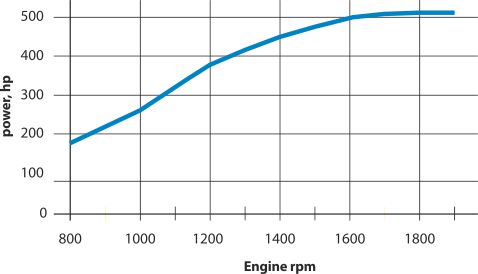

  • ENGINE SET 520 H.P.



    TORUM uses the engine L6, Cummins QSG 12 (520 h.p., Stage IV). Powerful
    and compact engine has good specific fuel rate and torque backup up to 20%.

    The air cleaning system uses air intake mesh with forced rotation (from the hydraulic motor), which significantly reduces the complexity of maintenance.

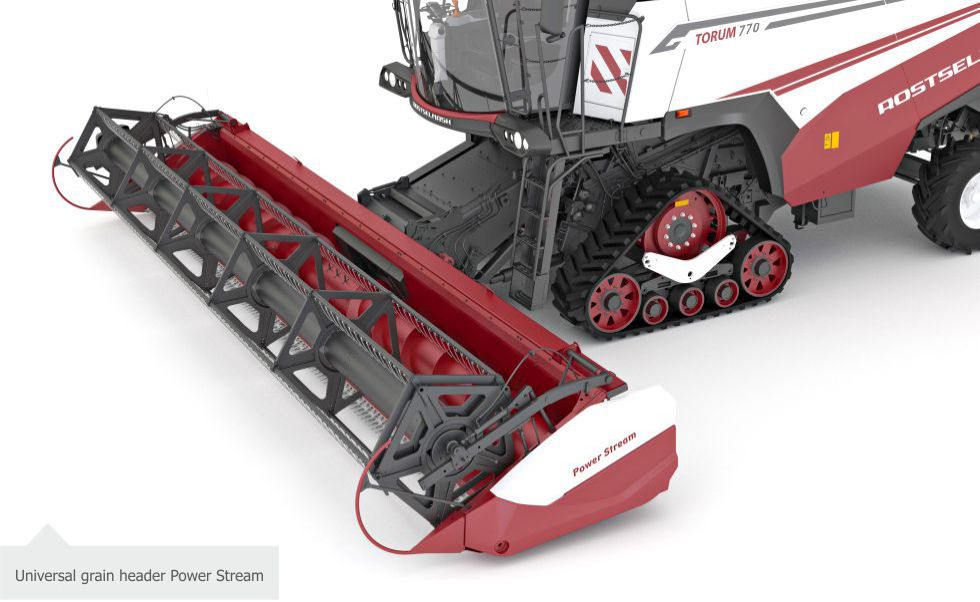

  • The correspondent frontal equipment is required for such high-efficient harvesters. Everybody knows that the harvesting starts from reaper. Therefore, the selection of right decision represents the most important aspect when selecting the harvester.

    Салон
    The reaper hydraulic drive

    allows to adjust its rpm without gears providing optimal
    and uniform mass feeding for the high productivity purpose. It is easy and reliable mechanism with minimal adjustments.

    Cutting apparatus

    operates smoothly, precisely and without wear. High cutting rpm and increased travel of knives increase the cut quality and, respectively, the harvesting productivity, especially
    in adverse conditions. The knives are attached with bolts, what considerably reduces the time of their replacement.
    In order to harvest the laid crops on uneven soils, the stem-lifters, which preliminary lift the stems fromground,
    are used to reduce the losses (included into basic set).

    Electro-hydraulic soil relief-copying system

    (included into standard set) allows to increase the harvesting efficiency due to increase of operating speed, and reduce the losses behind the reaper. Three operating modes, automatictransferring the adapter into transporting position and programmablepreset copying settings make easier the harvestingprocess. The electronics will care about the relief complexity.

    The large diameter worm

    prevents the winding of high-stem crops. Pins between
    the worm threads arranged along the coverage width promote the mass feeding even when harvesting peas and very low barley (for reapers with electrical-hydraulic copying). There are grooves on the pins allowing their careful braking in case of getting the rocks.

    Reaper rpm and harvester drive speed synchronization system

    makes easier the harvester operator’s work, and reduces the requirements to his qualification. As the result, increased harvesting productivity and reduced losses. Connecting areas of the reaper beams and rake elements are reliably protected from winding of long-stem plants.

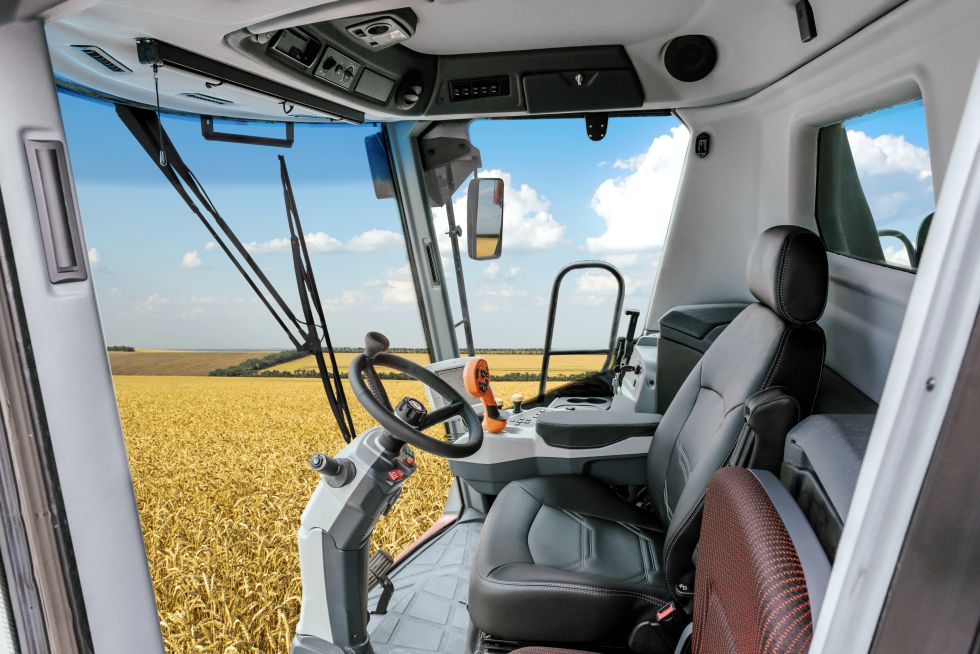

  • CABIN LUXURY CAB WITH INFORMATION SYSTEM ADVISER III



    TORUM harvester is equipped with spring, pressurized, double-seat Comfort Cab with improved noise-insulation, air-conditioner, heater, cooling chamber, and radio.

    Salon
    Cooler

    Always cool drink is so close, at outstretched arm distance.

    Microclimate devices

    It is possible to create healthy and pleasant microclimate
    in the cabin by means of air conditioning, heating
    and ventilation system.

    Audio preparation

    The effort of labor day will help to be released byfavorite music. There is a seat for audio system installation,
    i.e. it is enough to connect standard connectors.
    The speaker system andantenna are included in cabin standard set.

    Large panoramic glazing

    Free view to all sides is achieved due to panoramicshape
    of glass and large glazing area (over 5 m2).

    ADVISER monitor

    The on-board information system continuously watches over the threshing process and harvester mechanisms operation allowing to control the technical process stability and prevent failures of aggregates.

    Adjustable steering column

    The steering column adjustments in respect of height
    and inclination will help to adjust the work station
    for the operator.

    GST handle

    The multifunctional manipulator control is designedfor natural claw by palm, and ideally lays in hand.

    Armrest

    The built into the right armrest the remote control contains all the most important functions operational management.

    Comfortable working seat

    The sprung seat with all required adjustments allows
    to select comfortable working position and completely focus on the harvesting process.

    Additional seat

    Assistant or trainee will be able to settle comfortably on soft folding seat.

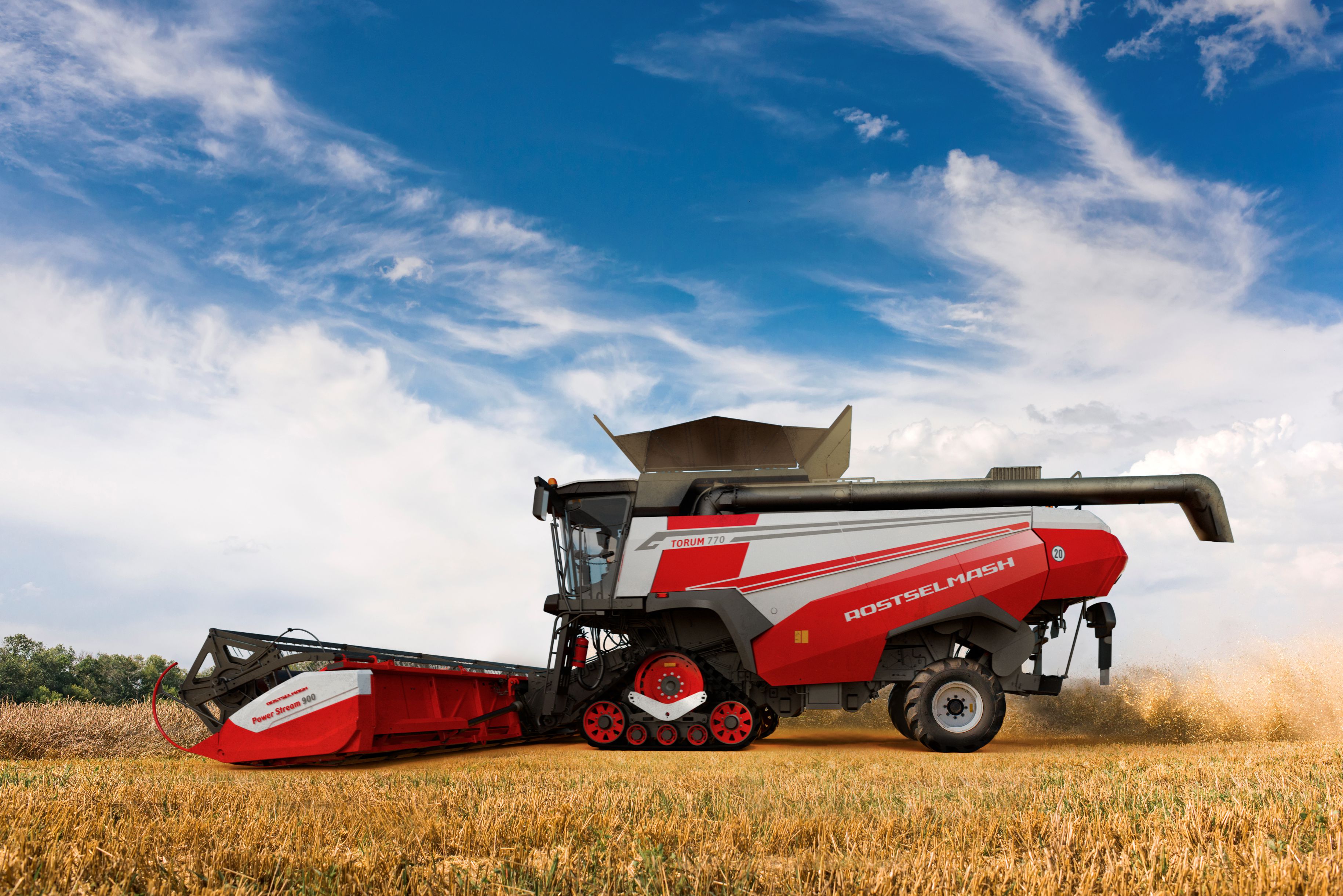

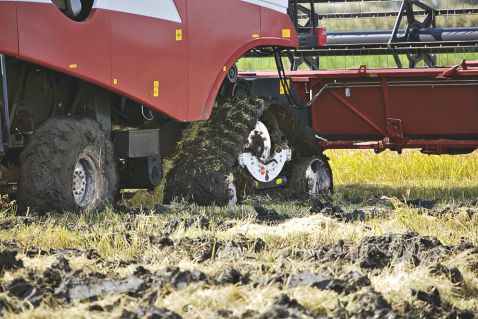

  • OPERATION IN EXTREME CONDITIONS



    For severe conditions the harvester allows AWD installation, for extreme conditions
    the modification with replaceable halftrack unit and AWD is foreseen.

    Besides, in basic configuration the power of the drive
    in transmission hydraulic drive is increased so that the harvester can easily climb the hills with grain tank filled.

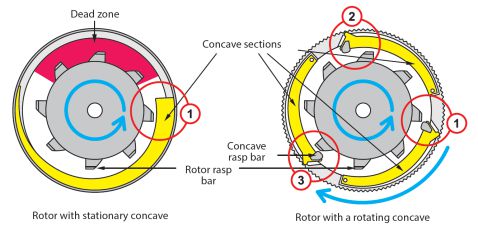

  • ADVANCED ROTOR SYSTEM WITH A ROTATING CONCAVE



    In a rotary harvester with stationary concave the concave area is not used completely, therefore possible performance indicators are reduced. Except for incomplete use
    of the concave area, when harvesting damp crops, rice the upper part of the concave
    is clotted (the so called dead zone). The rotating concave allows using 360°
    of the concave surface, prevents formation of dead zones and rotor clogging.

    Besides, the concave has three threshing sections allowing
    to set a threshing gap in one section. Thanks to this the mass
    is threshed three times with one round of the rotor unlike
    the single threshing in conventional rotor units. The same principle allows setting the increased threshing clearances.
    No additional adjustment of concave is required depending
    on crop harvesting conditions: for crops from barley to wheat the threshing clearance is set within the range of 16–20 mm.

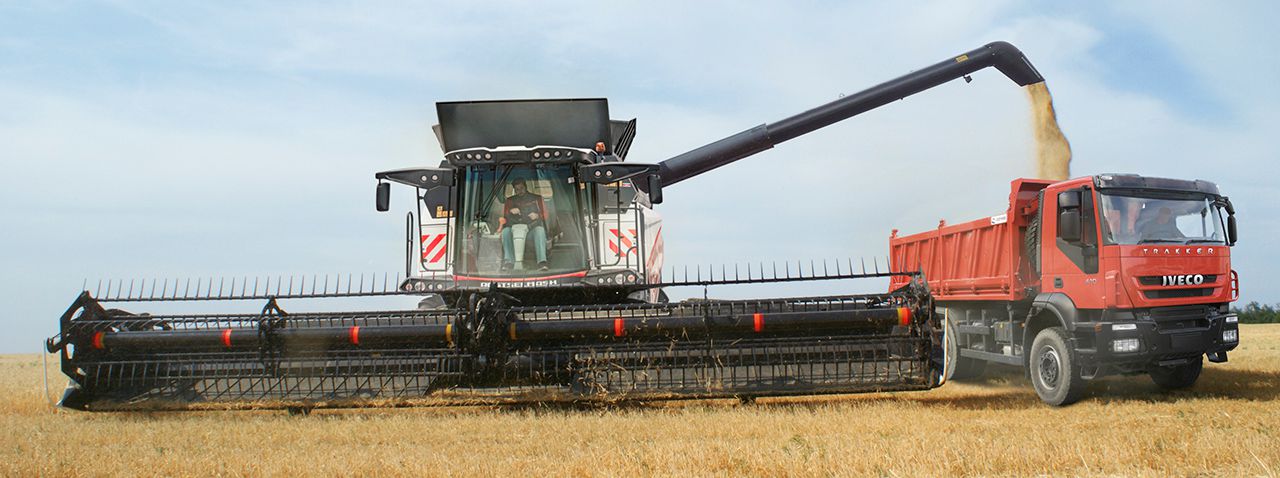

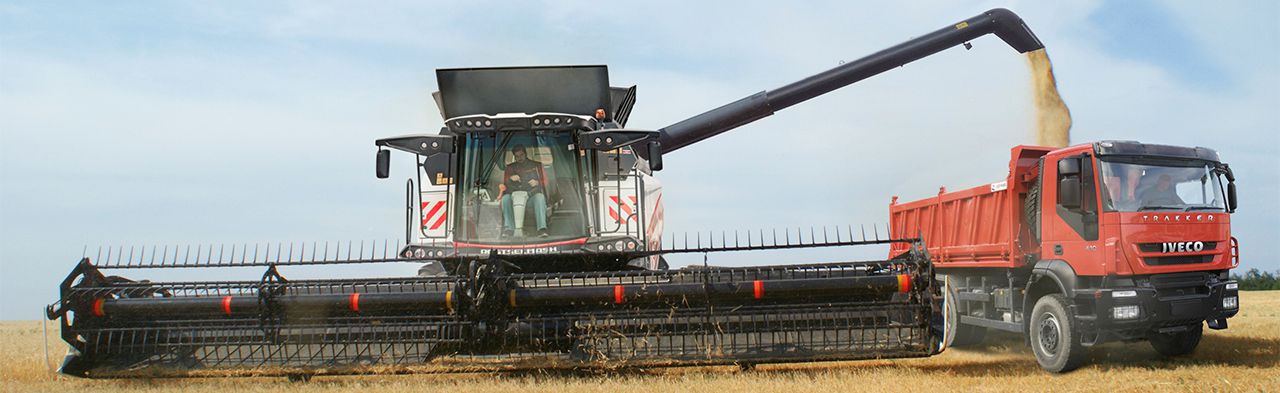

  • QUICK UNLOADING



    Clean grain goes into the tanker with capacity of 12,300 litres. Such capacity increases performance efficiency by reducing unload cycles. The unloading rate is 120 l/sec,
    the entire tanker is discharged within 2 minutes. Unloading auger length is increased and makes up 7.5 m, unloading height — 5.4 m, extend angle — 105 degrees.

    The grain can be easily unloaded into any trucks and trailers, while using a header with a width up to 14 m, when harvesting rice unloading can be done without leaving the bay. For fuel efficiency, the thresher drive can be disengaged.

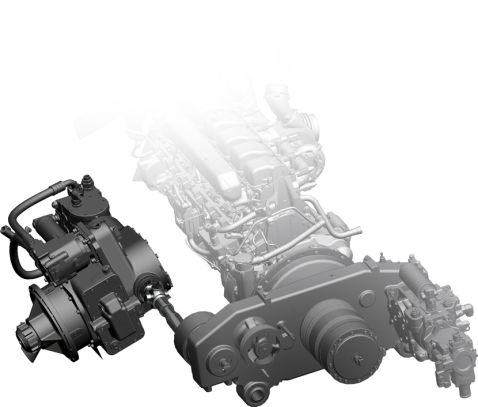

  • VARIABLE RATIO ROTOR DRIVE



    The rotor is driven by the planetary CVT with hydraulic control – a unique hydro-mechanical device, which combines the advantages of both types of drives: smooth and accurate speed control, high bearing force and reliable beltless transmission.

  • EASY SERVICING



    The air compressor (included in the basic package for all TORUM models) saves
    a lot of time for daily maintenance, especially in the field, when the technical support car is not available. To reduce the maintenance labour hours the harvester
    is optionally equipped with automatic centralized lubrication system.
