Grain harvesters NOVA
GENERAL DESCRIPTIONNOVA is a perfect combination of performance, reasonable prices, and low operation costs. An ideal solution for farmers and small farms. Compactness and maneuvrability make this harvester indispensable for the efficient operation on small fields with complex contours. The modern design and rational configuration of the harvester components provide the required performance and the verified price-and-quality balance.
-
-
-

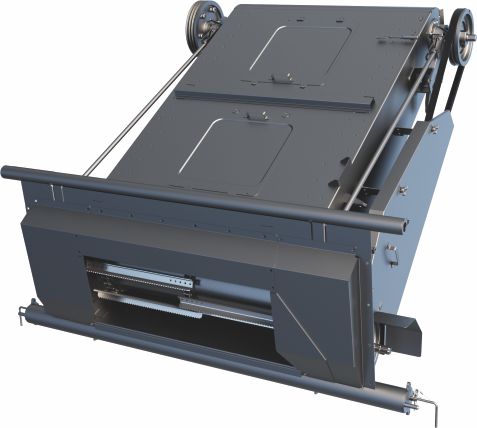

IMPROVED VISIBILITY WITH A NEW FEEDER HOUSE
The conveyor-type feeder house feeds the material to the threshing drum quickly and evenly. It has inspection hatches enabling the inspection of its condition and easy maintenance.
The stone trap before the threshing drum prevents stones from entering the threshing area. The hydraulic reverse function will help in difficult operation conditions.
-

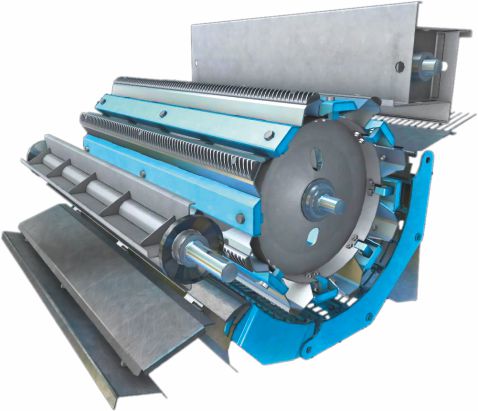

UNIQUE THRESHING/ SEPARATING SYSTEM
The classic single-drum thresher threshes very carefully (up to a thin layer!) and has a quite simple design. The unique doublesectional concave scheme along with a large coverage ensures the concave area of 0.93 sq. m, which is unachievable for same-class harvesters, and provides ultimately the high performance of the machine.
-
ENGINES
HIGH-POWER AND FUEL-EFFICIENT ENGINE
The harvester is equipped with a modern turbine diesel engine, straight-four, 180 h. p. (132 kW at 2000 PRM). The torque backup is up to 20%. The engine management system fully monitor its operation and supplies the exact amount of fuel required under the current load. This ensures the minimal fuel consumption.HIGH-POWER AND FUEL-EFFICIENT CUMMINS ENGINE
The harvester is equipped with a modern turbocharged diesel engine by Cummins (Stage IV) with VGT, 175 h. p. (129 kW at 2 200 PRM). The torque reserve is up to 20%. The engine management system fully monitor its operation and supplies the exact amount of fuel required under the current load. This ensures the minimal fuel consumption. To meet the emission legislation the SCR system with large capacity tank for AdBlue (57 L) is combined with Diesel Oxidation Catalyst (DOC).HIGH-POWER AND FUEL-EFFICIENT ENGINE
The harvester is equipped with a robust Cummins diesel engine, 160 h. p. (121 kW at 2 200 PRM). The torque backup is up to 20%. The simple and reliable design of engine has minimum electronic components. The fuel system provides low fuel consumption and high performance torque curve.
-
EFFICIENT CLEANING SYSTEM
The double-sieve cleaning shoe system is used for cleaning heaps. A great drop height and the precleaner tine grid significantly improve the cleaning performance. The total area of sieves is 3.59 sq. m., which is one of the best indicators for the third-class harvesters.
The cleaning system utilises a 6-vane fan; the fan speed is controlled from the cab and displayed on the control panel.
-
-
HIGH-PERFORMANCE STRAW WALKER WITH A LARGE SEPARATION AREA
the optimal length of sections will ensure the thorough separation of every grain.
The shaking amplitude of sections is designed to ensure the maximum degree of separation of grain from heaps.
-
EFFICIENT CLEANING SYSTEM
The double-sieve cleaning shoe system is used for cleaning heaps. A great drop height and the precleaner tine grid significantly improve the cleaning performance. The total area of sieves is 3.59 sq. m., which is the largest in this class of combines. The cleaning system utilises a 6-vane fan; the fan speed is controlled from the cab and displayed on the control panel.
-

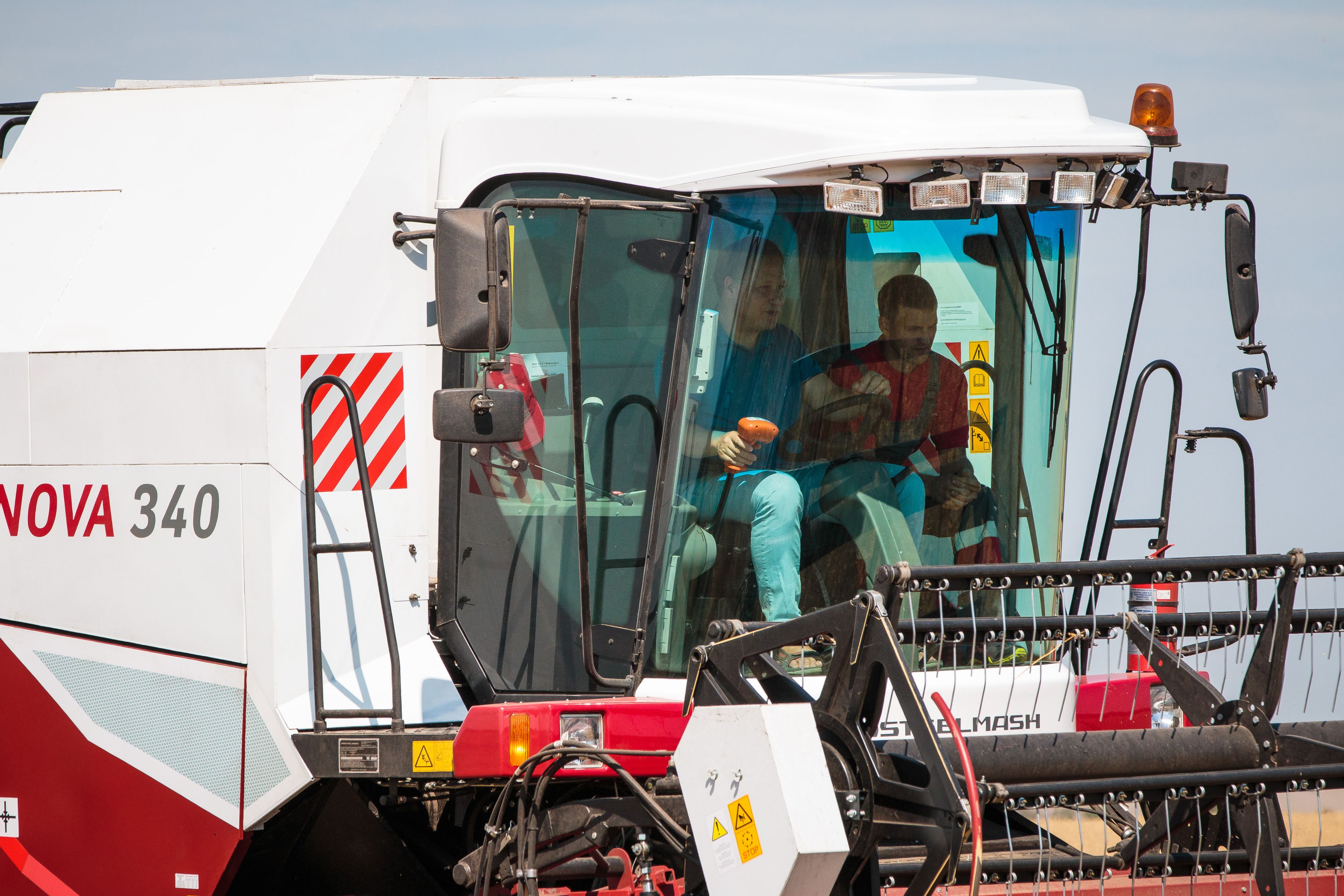

COMFORT CAB WITH THE ADVISER II INFORMATION SYSTEM
NOVA harvesters are equipped with Comfort Cab. The air conditioning and heating system is included in the standard package. You will enjoy the comfort that in fact enables the efficient work with a lower stress and fatigue until the end of the shift.
The Adviser voice information system continuously monitors the threshing process and the functioning of harvester mechanisms, and allows to monitor the process stability and prevent the failure of units.
-
LARGE-CAPACITY GRAIN TANK 4 500 L
The grain tank capacity is the most optimal for this class of machines. The high-speed unloader enables the unloading for no more than 2 minutes. The adjustable fins inside the grain tank adjust the unloading speed depending on the harvested crop type and moisture content.

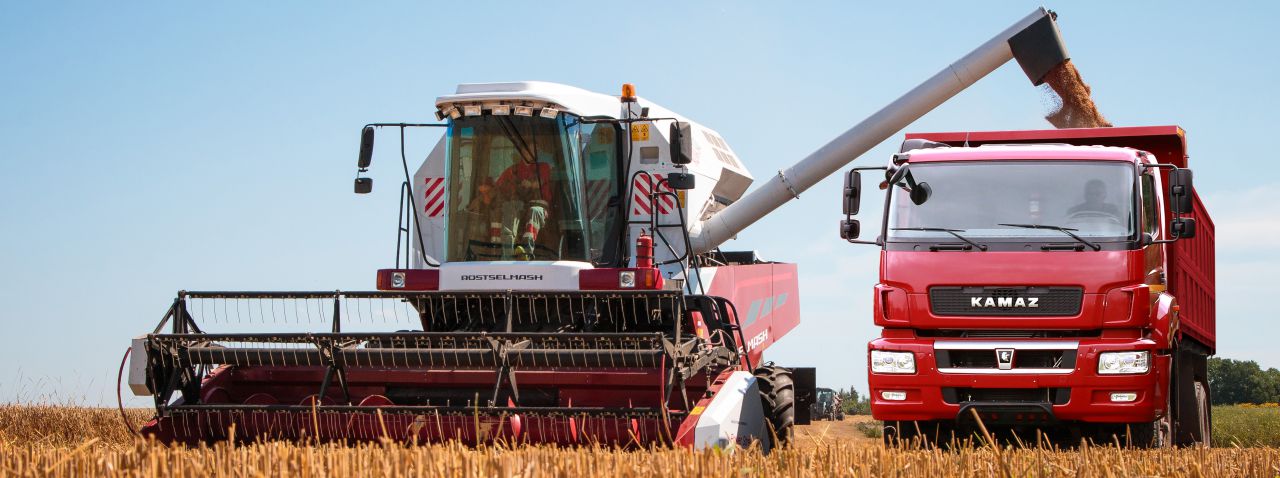

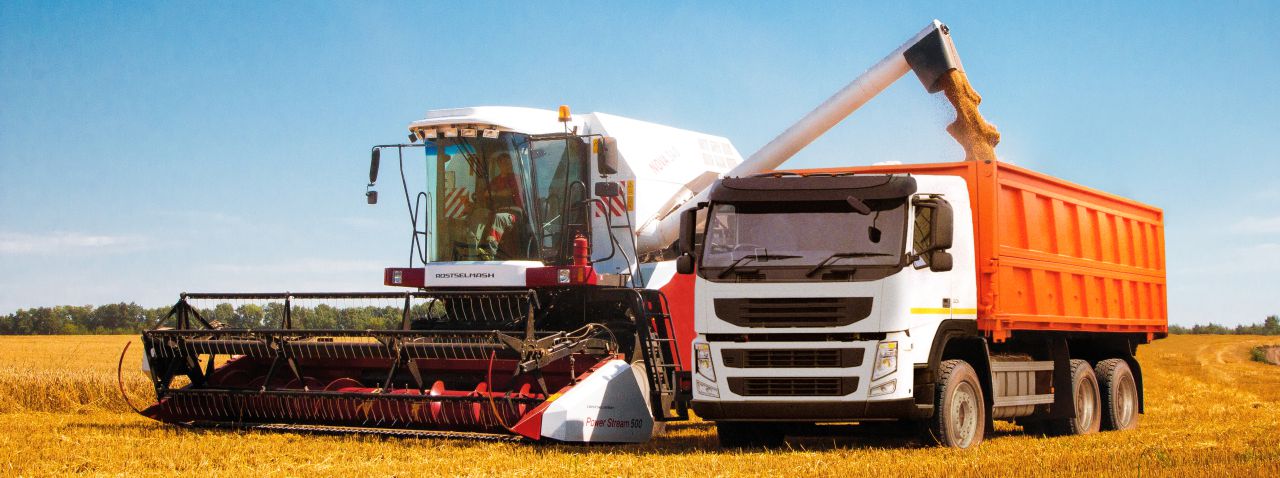

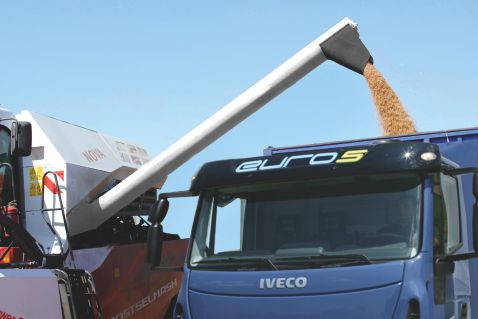

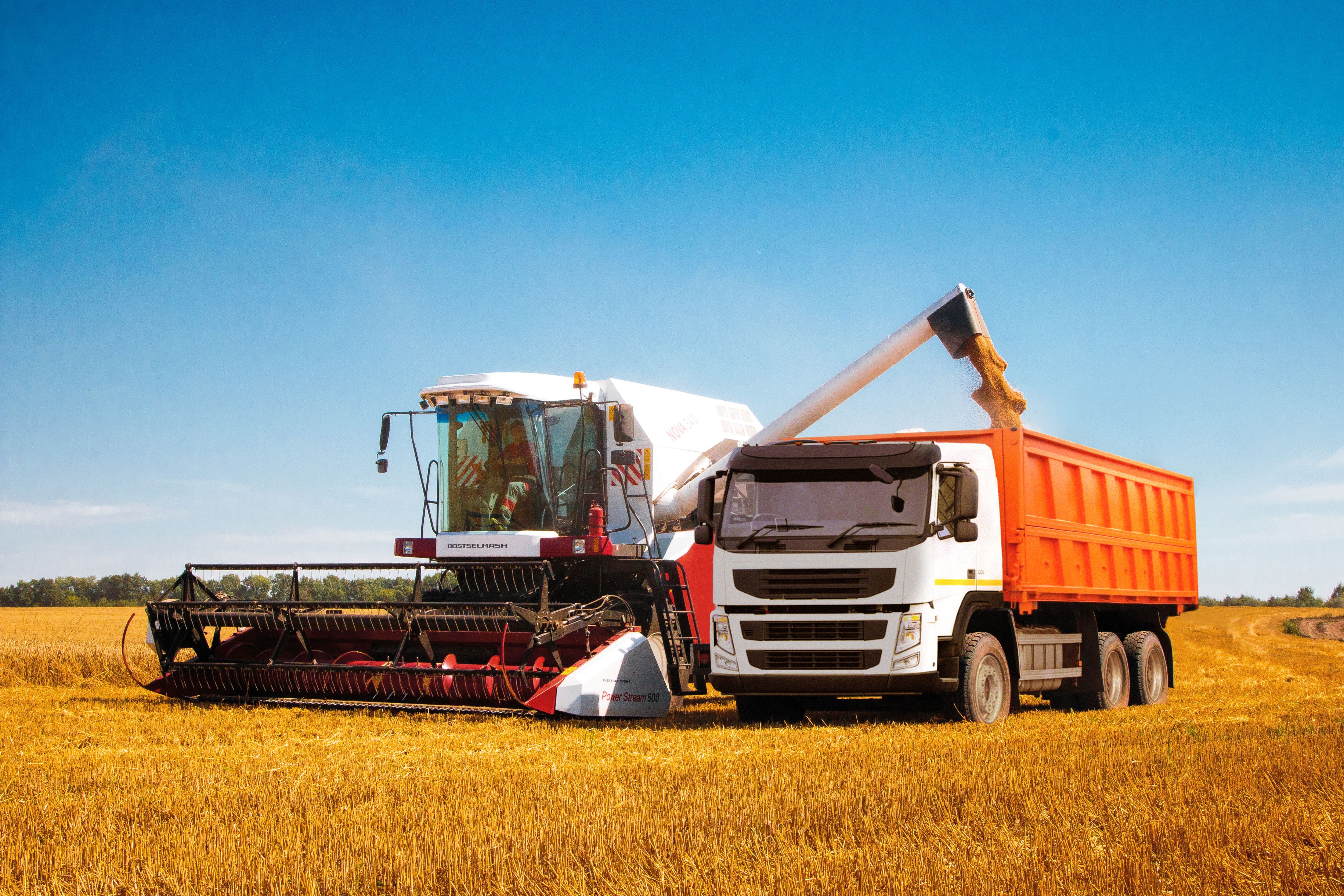

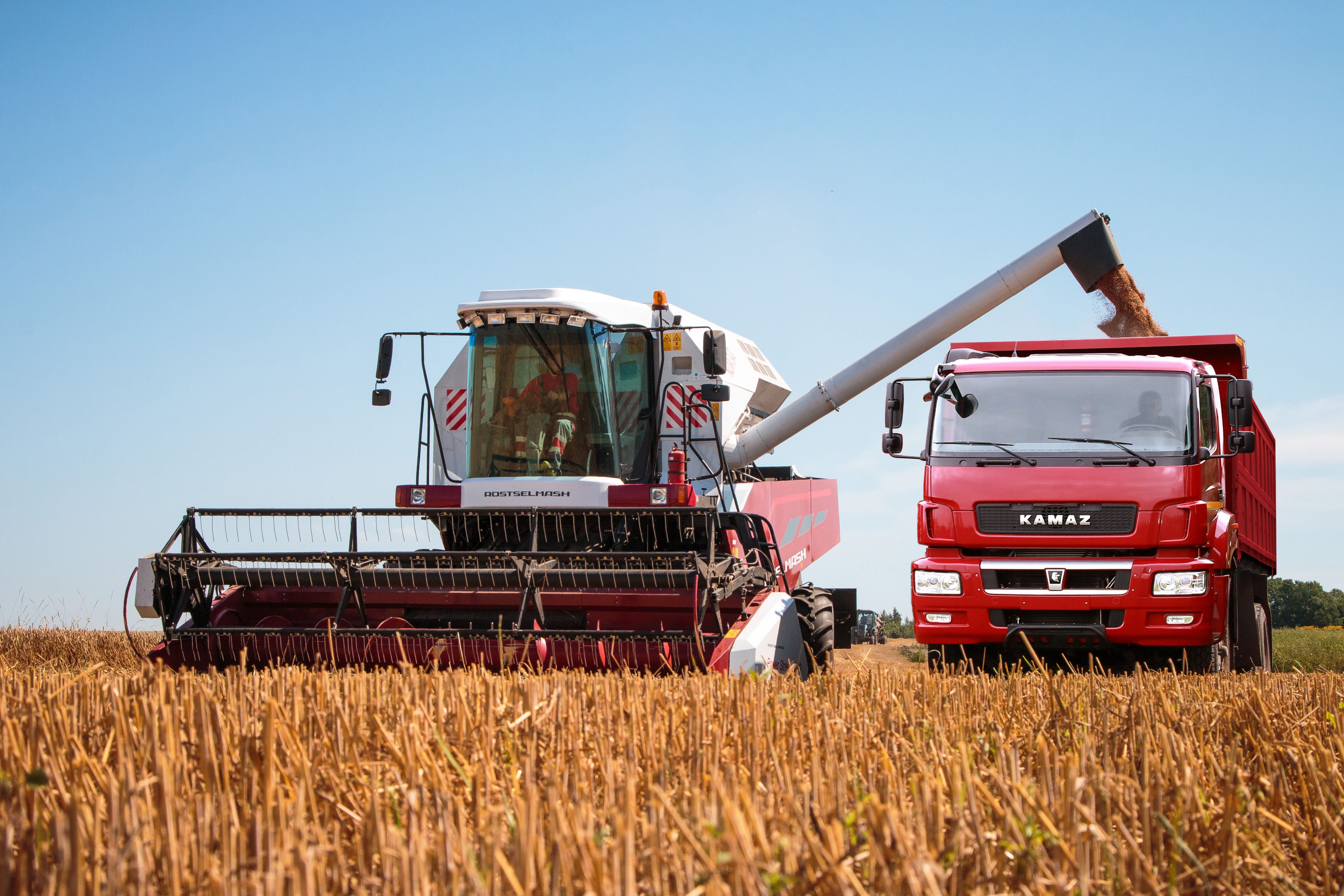

The unloading height is 4 m, which allows to unload grain to any vehicles. The hydraulic control of the auger can be activated from the cab.
-
-

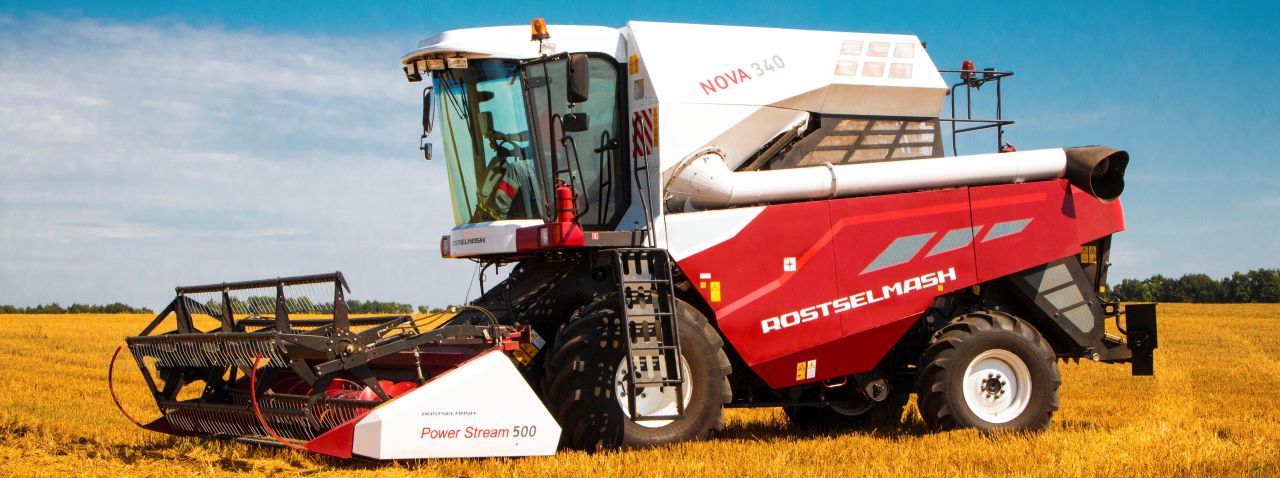

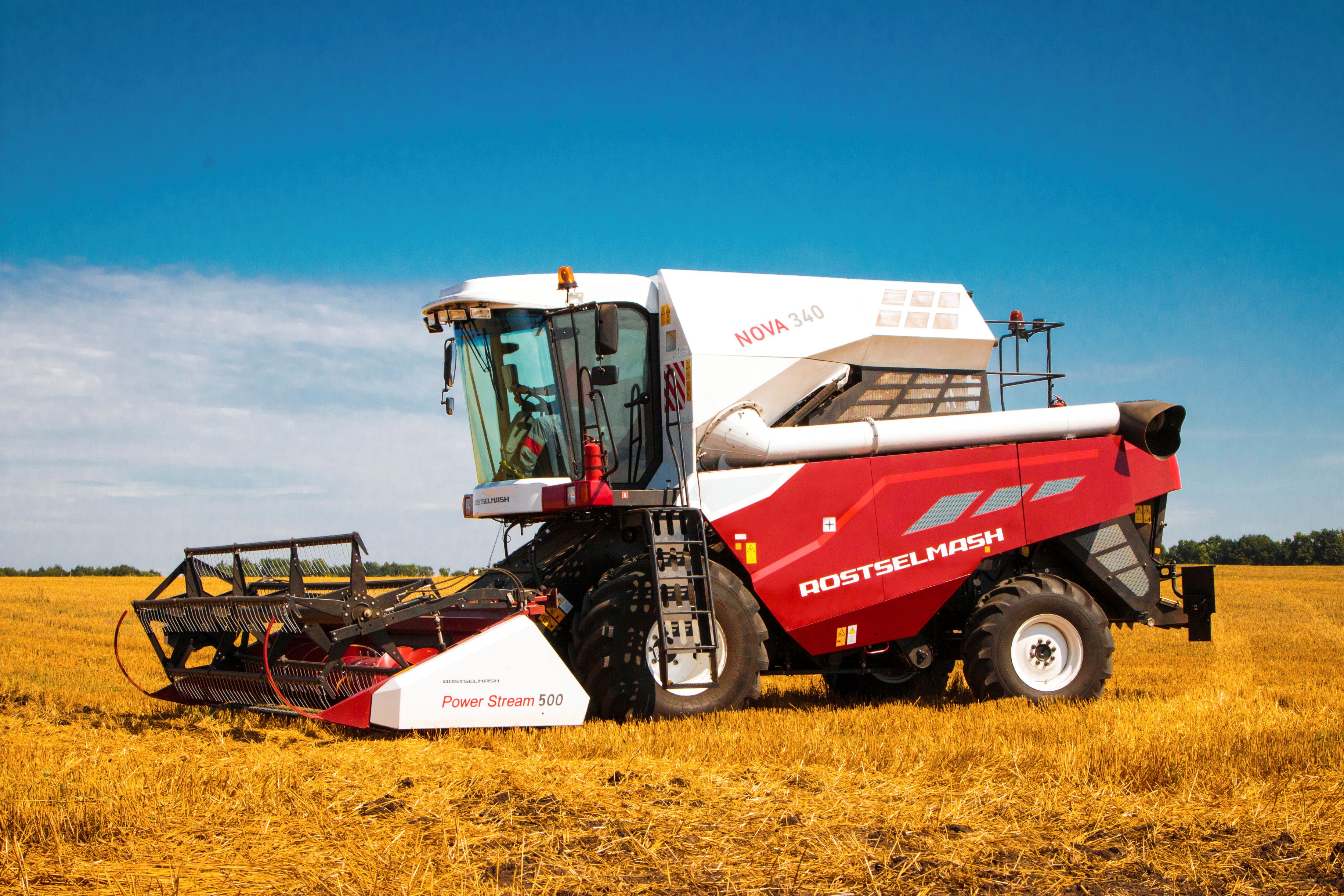

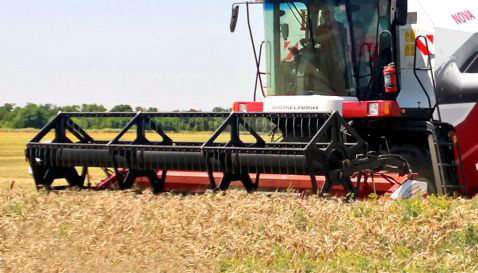

POWER STREAM VERSATILE HEADER
Power Stream ensures a higher performance due to the reduction of loss and optimal feeding of the harvested material. This header proved in practice that due to its original cutterbar with a planetary drive it reduces spilled grain losses and ensures a steady and smooth feeding irrespective of operation conditions.
The reel hydraulic drive featuring a synchrodrive automatically adjusts the reel speed to match the ground speed. The single hydraulic connector is optional.
-

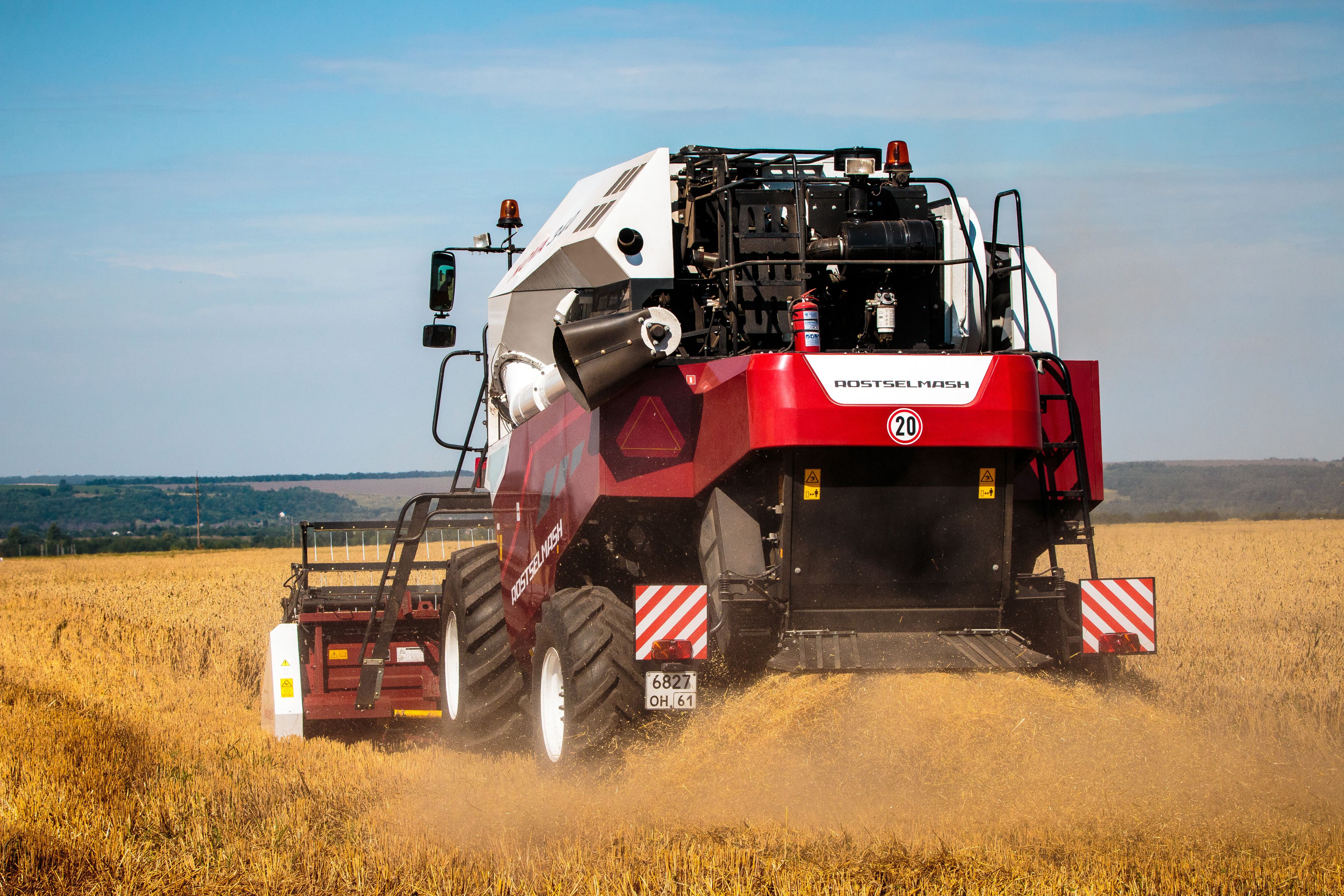

RELIABLE CHOPPER/SPREADER

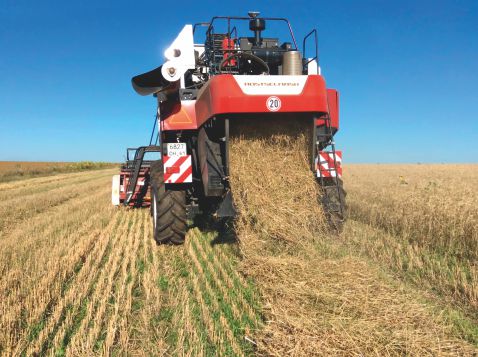

The classic threshing and separating system NOVA almost does not damage straw. Depending on the intended use, straw may be chopped and spread or windrowed.
The chopping shaft drive may be disengaged in a split second.
-
EASY MAINTENANCE
The air compressor with a 110 L receiver (included in the basic four-wheel drive harvester package) saves quite much time for the shift maintenance and is especially helpful in field conditions if there is no technical support vehicle nearby.
-
Get a best-price offer for harvester NOVA
-
