375
HP
RSM 2375 engine power rating: 375 HP
-
50%

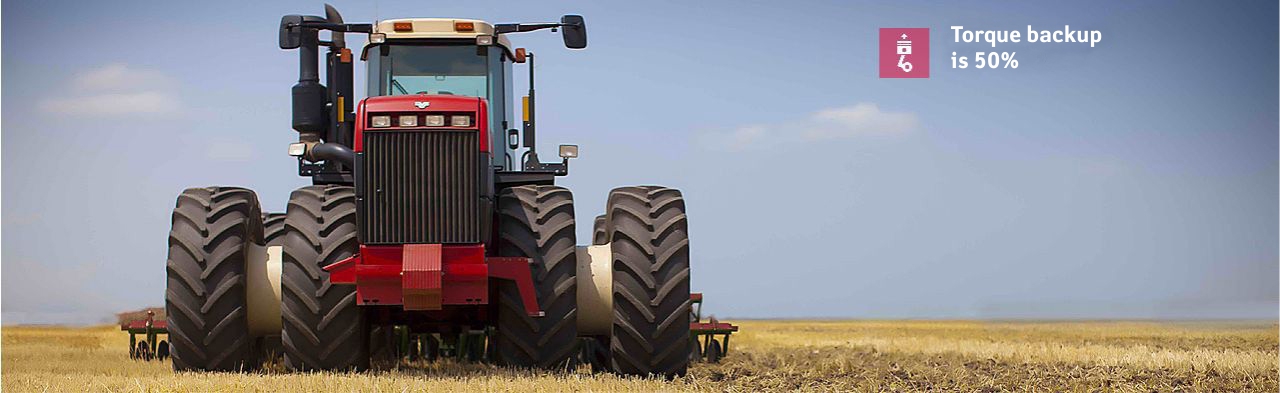

Torque backup is 50%
-
927
L

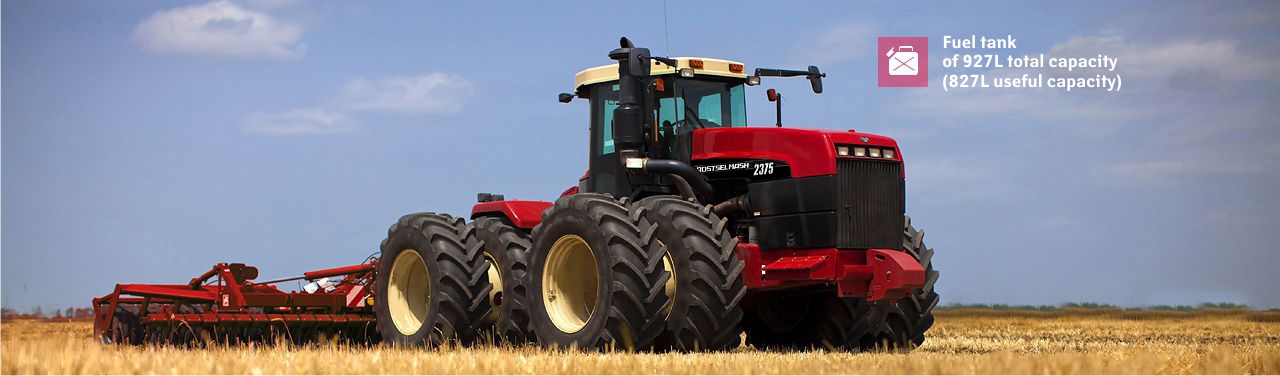

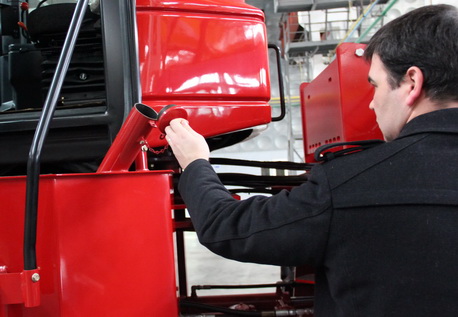

Fuel tank of 927L total capacity (827L useful capacity)
-
14
ha/hr

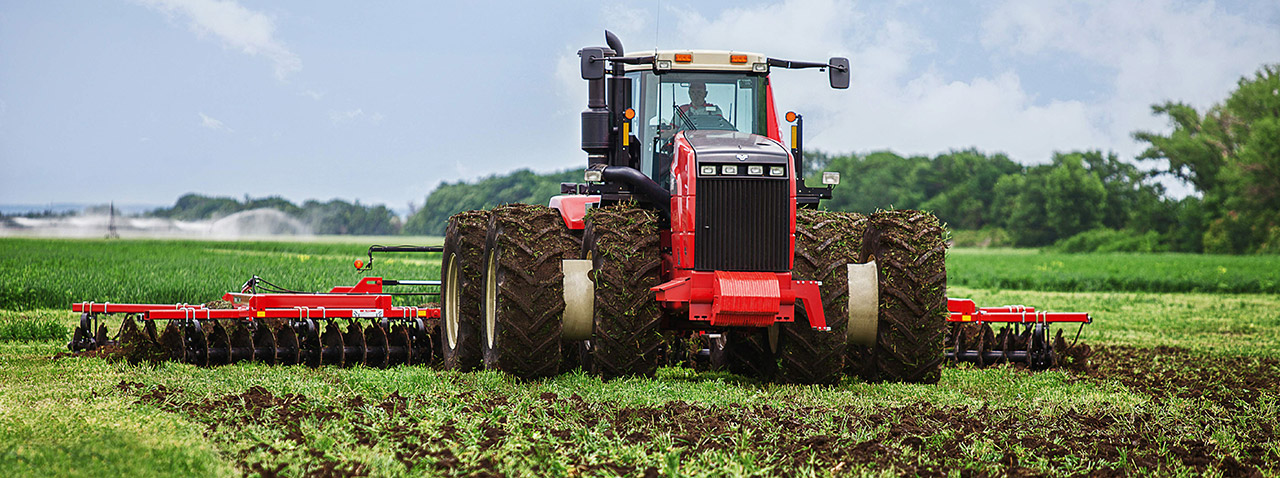

Performance of RSM 2375 equipped with С500 13.8m cultivator
-
170
L/min

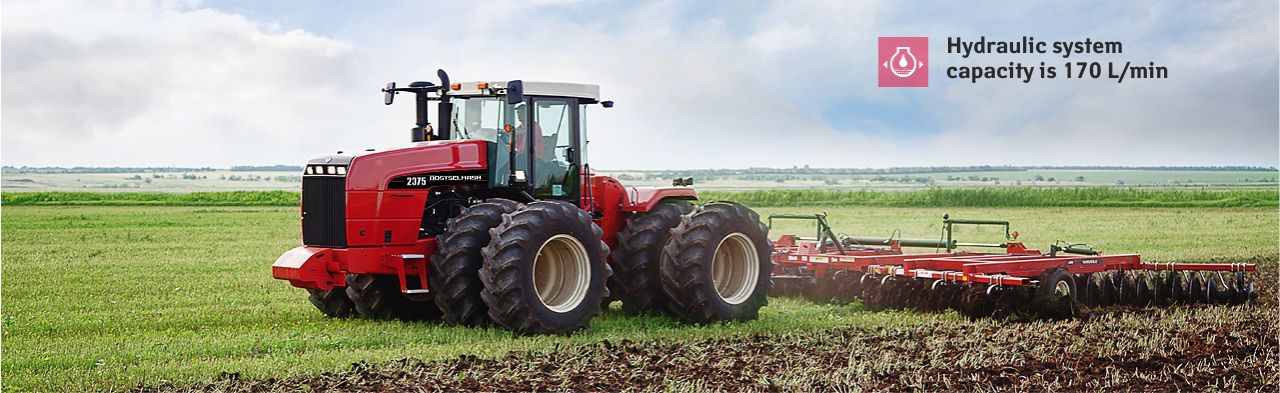

Hydraulic system capacity
-

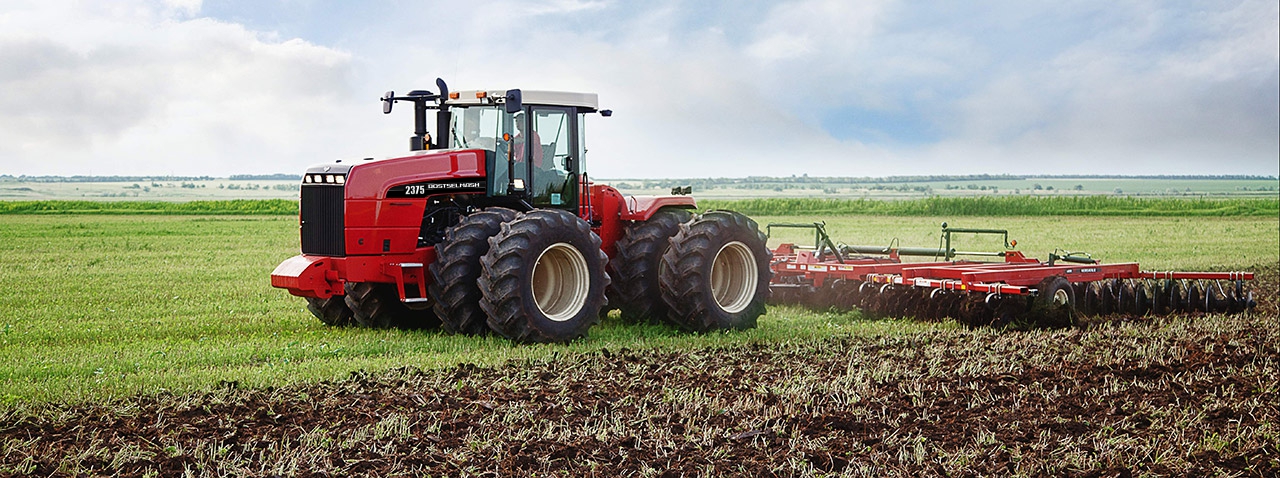

Tractors series 2000 (335-375HP)
OVERVIEWThe RSM 2375 articulated tractors have taken over all the best features with a major improvement in power and comfort. These are high-performance, service-friendly and efficient machines, and with advanced implements attached, they can be used for a wide range of agricultural applications using any technology, including minimal-till and no-till.
-
-

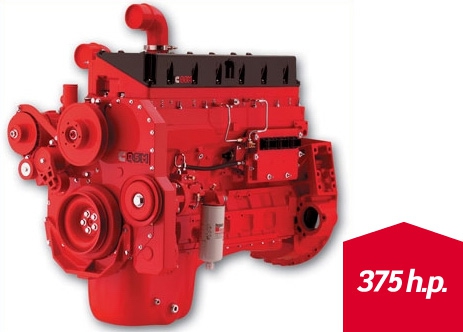

HIGH-HORSEPOWER ENGINES BY CUMMINS®
The RSM tractors come with Cummins engines embracing cutting edge technologies to ensure reliable performance throughout its service life.
The RSM 2375 tractors are equipped with QSM-11 11L in-line turbocharged engine with intercooler and electronic fuel injection, which are suited to operate at a 50% torque backup. These engine will start no matter the weather, they offer unrivalled service life when used for heavy-duty applications.
-
-

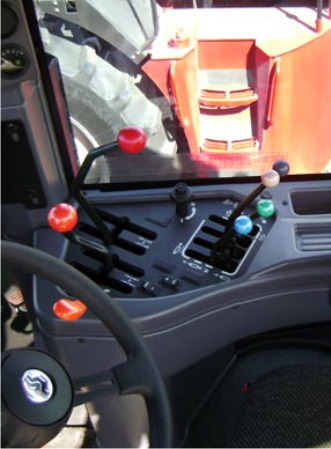

QUADSHIFT® MANUAL TRANSMISSION
Quadshift® III 12x4 manual transmission is standard equipment. It perfectly matches the engine horsepower and traction. The transmission has 3 speed ranges. Each speed range has 4 synchronized gears.
The gear ratios are matched for maximum performance, gears providing an operating speed from 4.8 to 13 km/h are grouped in the same range.
-
DRIVE AXLES

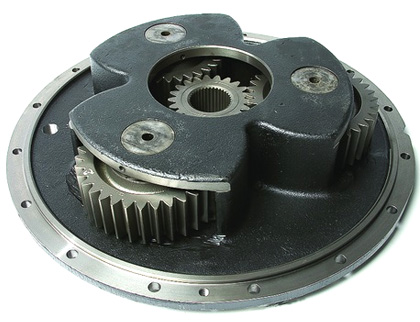

The RSM 2375 tractors are equipped with beefed-up final drives that ultimately transmit all the power to the drawbar, boosting tractor traction performance. Planetary hubs are suspended on large bearings attached directly to the axle beam, which supports most of the load.
This design reduces service time noticeably and extends axle service life.
-
-
HYDRAULICS
HydraFlow® hydraulic systemThe Closed Center Load Sensing Hydraulic System provides 200 bar pressure

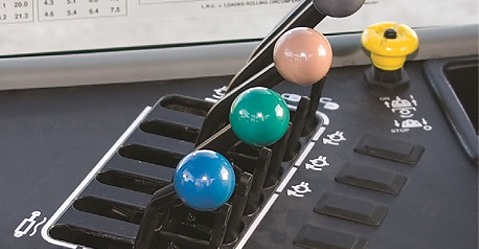

and 170 L/min flow for steady operation of an implement.The hydraulic system controls are arranged in a convenient and user-friendly layout. The system comes with four remote hydraulic valves and 3/4" high flow couplings and a return pressureless line as standard. The valves provide four modes: lifting, lowering, neutral, floating.

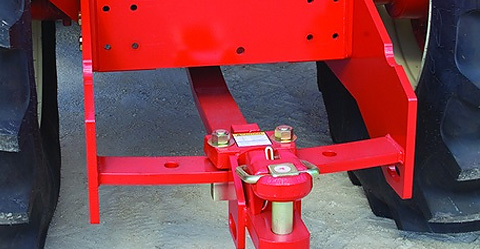

DrawbarThe tractor standard equipment includes a Class 4 heavy-duty drawbar
and 2” (51 mm) drawbar pin. The drawbar pin is held in place by a retaining
cotter pin.

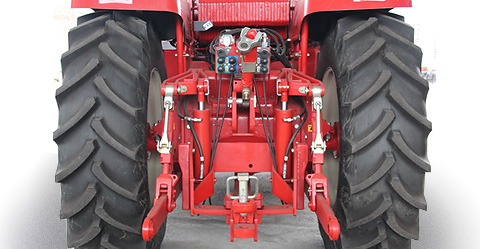

Rear hitch (option)5 900kg САТ IVN rear 3-point hitch.
The Quick-Hitch frame option may be added to aid in attaching implements
and semi-mounted implements.

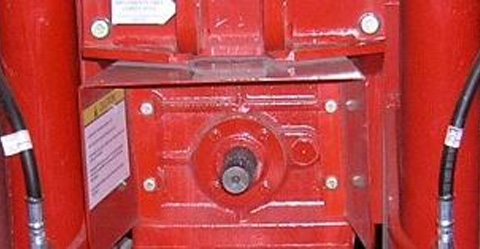

PTOAn optional independent PTO shaft is driven by a multiple disc clutch ensuring
a smooth start of any implement attached. It will never fail you no matter how tough the job may be. The 20-spline 45 mm 1 000 RPM PTO shaft can be used
for any challenging task. -
.jpg)
-
MAINTENANCE
Every minute counts in the field, therefore the RSM 2375 tractors are designed to consume as little time and efforts for shift maintenance as possible.
All grease points can be accessed from ground. Most fluid tanks are provided with sight glasses to quickly check oil level in the hydraulic system, the differential and transmission, ensuring timely service and efficient machine operation. The cooler package is easily accessible and swings out for access. This is aimed for maximum comfort operator during shift maintenance to minimise time for cooler package inspection and cleaning. The air filter of the powerful and robust engine is conveniently located for regular service to be timely performed to prevent rapid engine wear in heavy-duty conditions.
-
